Thương hiệu: Gigabyte

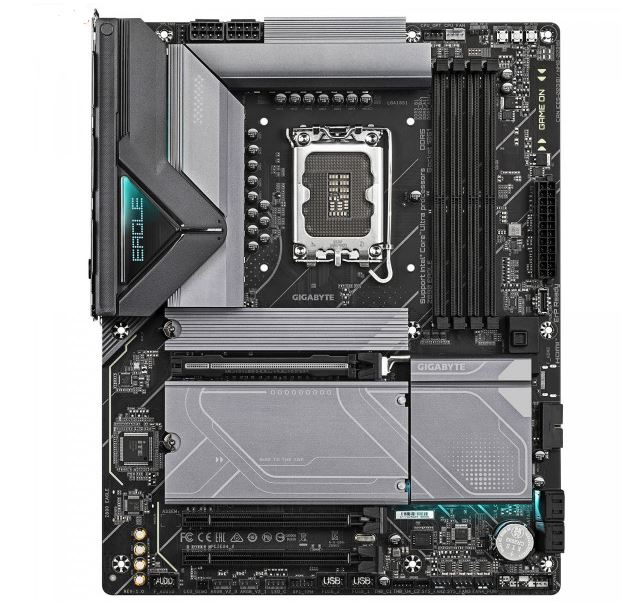

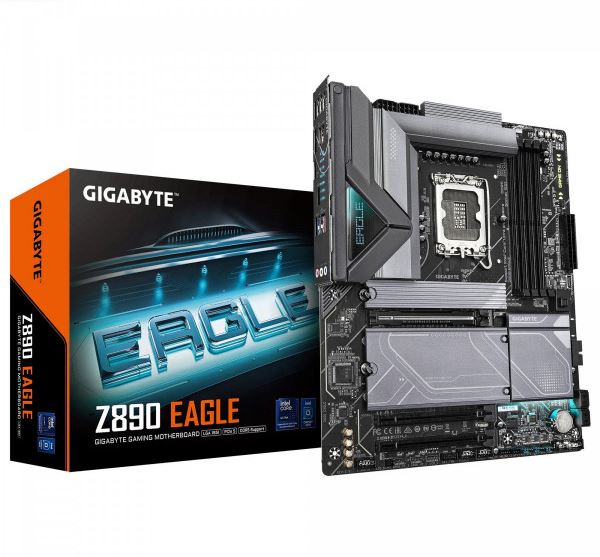

Dòng sản phẩm: Z890 EAGLE
Socket: LGA1851 socket
Chipset Intel Z890 Express, cung cấp hiệu suất cao.
Hỗ trợ tối đa 256 GB RAM DDR5 qua 4 khe DIMM.
Âm thanh Realtek với độ phân giải 7.1 kênh.
Mạng LAN sử dụng chip Realtek 2.5GbE.
Hỗ trợ nhiều giao diện lưu trữ, bao gồm PCIe 5.0 và SATA 6Gb/s.
Kích thước bo mạch chính dạng ATX: 30.5cm x 24.4cm.
Key Features:
Supports Intel Core Ultra processors (Series 2)
Digital twin 14+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 4*M.2 slots, including 1*
PCIe 5.0 x4 PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Kết nối I/O nội bộ: 1 cổng 24-pin ATX, 2 cổng 8-pin ATX 12V, 1 cổng quạt CPU, 1 cổng quạt CPU/pump, 3 cổng quạt hệ thống, 1 cổng pump hệ thống, 3 cổng LED RGB Gen2, 1 cổng LED RGB, 4 cổng M.2, 4 cổng SATA 6Gb/s, cổng âm thanh mặt trước, USB Type-C (USB 3.2 Gen 2), USB 3.2 Gen 1, USB 2.0/1.1, 2 cổng Thunderbolt add-in, cổng TPM, nút nguồn, nút Q-Flash Plus, nút reset, và jumper CMOS.

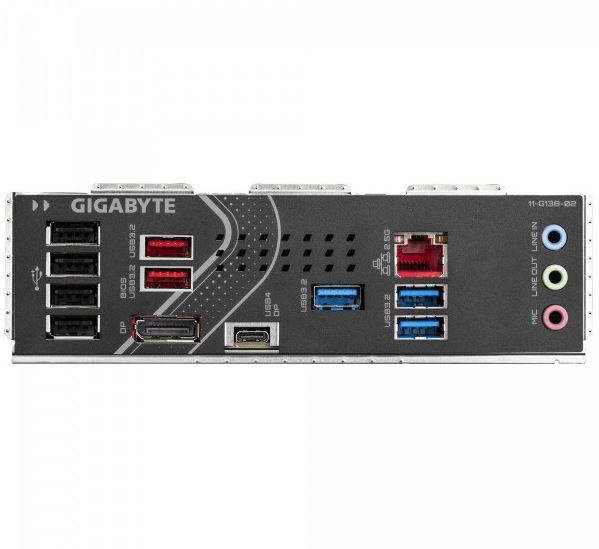

Kết nối I/O phía sau: 1 cổng USB4 Type-C, 2 cổng USB 3.2 Gen 2 Type-A, 3 cổng USB 3.2 Gen 1, 4 cổng USB 2.0/1.1, 1 cổng DisplayPort, 2 cổng kết nối anten Wi-Fi, 1 cổng RJ-45, 3 jack âm thanh.
RAM hỗ trợ:
Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
